Current Relay

Current Relay- CS-PE-02 is designed to provide a simple solution for monitoring the status of electrical equipment or loads in Building Automation Systems. CS-PE-02 continuously monitor the power status of the equipment by sensing the flow of current. CS-PE- 02 provides a potential free contact for the BMS Controller. CS-PE-02 provide the solid state contact and work just like dry contacts. When the switch is closed 15 Ohms is present. When the switch is open more than 200 Mega –Ohms is present.

Specifications:
• Part Code: CS-PE-02
• Weight: 108 gm
• Input AC Current: 1A to 100Amps.
• Input Voltage Drop: < 0.5Volts
• Output: Potential free Contact
• Output Rating: 0.8Amps.at 60 Volts AC/DC (Max.)
• Output Terminal Capacitance: < 15pF
• Off State Leakage Current: <1uA
• Turn On Time: <1 mS
• Turn Off Time: <1.5mS
• Isolation Voltage: 3750VAC
• Operating Temperature: -25 oC to +85 oC

INSTALLATION
• Ensure power conductor to be monitored is disconnected and locked out from the power source
• Slide the conductor to be monitored through the sensing hole of the CS-PE-02.
• Terminate the conductor
• Connect the CS-PE-02 output to the BMS Controller.

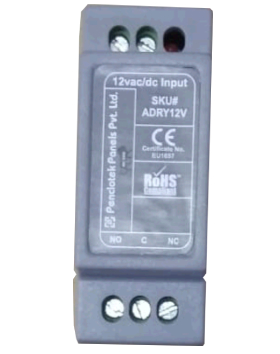

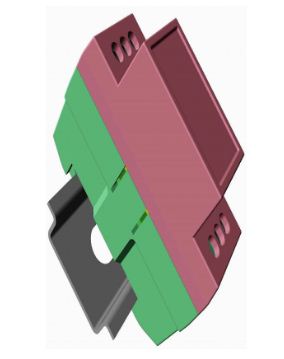

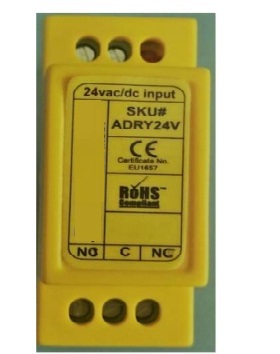

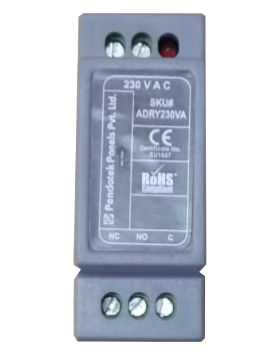

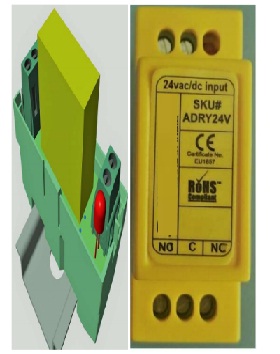

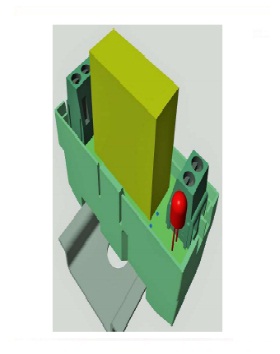

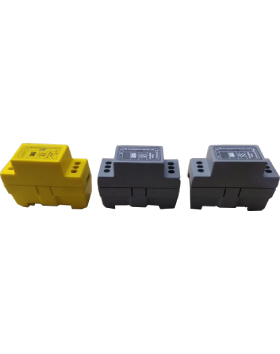

AC-DC Relay

AC/DC Relay are Suitable for switching, Industrial Facilities , Equipment & Automation Applications. AC/DC Relay ideal for compact high current applications. • Electrical life: 200,000 cycles (AC Load) and 100,000 cycles (DC Load). • Mechanical life: 30 million cycles (AC coil) and 50 million cycles (DC coil)

Specifications:
• Part Code: ACDCRY
• Weight: 27gm
• Compact size: 29 x 12.7 x 15 mm.
• Contact rating: 7A (SPDT) 10A (SPDT High Capacity Version).
• Electrical life: 100,000 cycles at full resistive load.
• Mechanical life: 10 million cycles at no load.
• Operating Temperature:- 45°C
