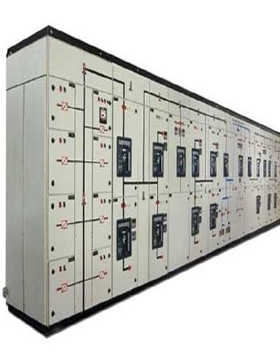

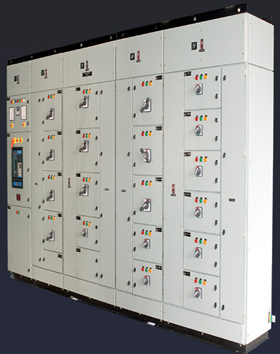

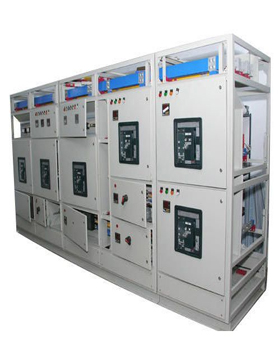

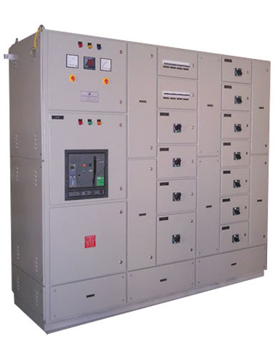

PCC Panels (Power Control Center)

PCC Panels (Power Control Center)

Power Control Centre (PCCP) main distribution boards are used to distribute and control the power supply. The main distribution boards are generally installed after the main power source (e.g. transformers or generators) and used to divide the power feed into subsidiary outgoing feeders.
Specifications:

• Compatible and ASTA type tested in accordance with IEC 61439-1 & 2.
• Rated insulation voltage up to 1000V
• Main busbars up to 6300A
• Busbar short-circuit withstand capacity up to 100kA for 1 Sec / 65KA for 3 Sec
• Neutral busbars are rated up to 100% of the main busbar and Earth busbars are rated up to 100% of the Neutral busbar
• Tested for Internal Arc Fault as per IEC 61641 up to 100kA (Classified as PSC assembly providing PERSONAL and ASSEMBLY protection under arcing conditions)
• Seismically tested up to 0.75g = 8.0 Richter scale.
• Forms of internal separation from Form 1 to Form 4b
• Designed for Ambient temperature up to 50 °C
• Available for indoor & outdoor applications, up to IP55
