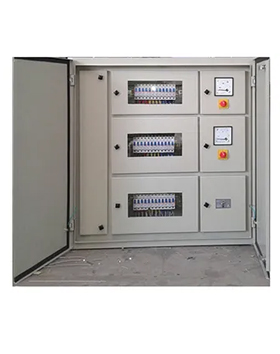

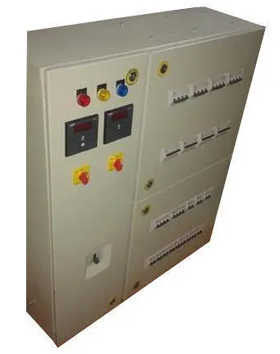

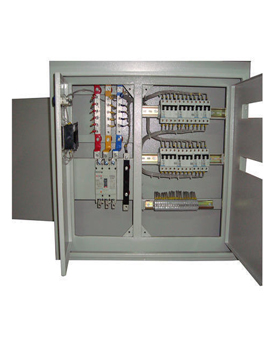

Lighting Distribution Panel
Lighting Panel (LP) sub-distribution boards offer the right low voltage (LV) solution for large buildings by dividing the electrical power feed into subsidiary circuits. They are manufactured from high-quality materials and contain the latest safety features. Sub-distribution boards are generally installed between the main distribution boards and the final distribution boards.
-
Specifications:
- Compatible and type tested in accordance with IEC 61439-1 & 2
- Rated insulation voltage up to 800V
- Main busbars rated up to 630A
- Busbar short-circuit withstand capacity up to 50kA for 1 Sec
- Neutral busbars rated up to 100% of the main busbar, Earth busbars rated up to 50% of the Neutral busbar
- Available Up to 14 outgoing MCCB’s
- Designed for Ambient temperature up to 50 °C
- Wall mounted and free standing designs
- Available for indoor & outdoor applications, up to IP66
- Standard Color: RAL 7035 - (other colors on request)

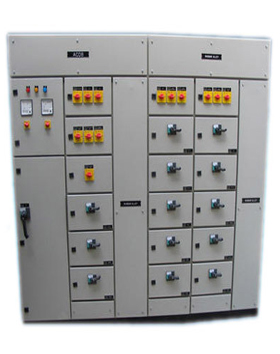

- As a leading L.T Panels manufacturers in Ghaziabad, Delhi NCR, Penclotek Panels Pvt. Ltd. brings forth for our customers a wide range of Main LT Control Panel that is available in several designs and models at industry leading prices. A
